Large-Scale Stamping Dies: Design and Applications

Introduction to Large-Scale Stamping Dies

Large-scale stamping dies are critical tools in modern manufacturing, enabling the production of high-precision, large metal components used across industries such as automotive, aerospace, and industrial equipment. These dies, used in conjunction with high-tonnage stamping presses, shape large metal sheets into complex parts through processes like cutting, bending, and forming. This article explores their design principles, challenges, and applications, highlighting their role in custom hardware processing and stainless steel stamping.

Design Principles of Large-Scale Stamping Dies

Designing large-scale stamping dies requires a combination of engineering precision, material science, and advanced manufacturing techniques. Key considerations include:

✓ Material Selection: Dies are typically made from high-strength tool steels, such as D2 or A2, to withstand immense forces. For stainless steel stamping, carbide inserts may be used to handle the material’s abrasiveness.
✓ Die Geometry: The die must match the component’s specifications, accounting for material spring-back and thickness variations. CAD software and finite element analysis (FEA) optimize die geometry.
✓ Clearance and Tolerance: Proper clearance prevents defects like burrs or tearing. Maintaining tight tolerances across oversized dies is a significant challenge.
✓ Lubrication and Cooling: Integrated lubrication channels and cooling systems reduce wear and improve part quality by managing heat and friction.
✓ Modularity and Maintenance: Modular designs allow easy replacement of worn sections, while regular maintenance, like sharpening or recoating, extends die lifespan.

Challenges in Large-Scale Stamping Die Design

Large-scale stamping dies face unique challenges due to the size and complexity of the components they produce:

✓ Material Behavior: Large metal sheets, especially stainless steel, exhibit inconsistent behavior like spring-back or wrinkling, requiring precise die adjustments.
✓ Tool Wear: High forces accelerate die wear, particularly with abrasive materials. Advanced coatings, like titanium nitride, enhance durability.
✓ Cost and Lead Time: Manufacturing large dies is costly and time-consuming due to their size and precision requirements.
✓ Handling and Setup: Oversized dies require specialized equipment for handling and alignment, increasing operational complexity.

Applications of Large-Scale Stamping Dies

Large-scale stamping dies are integral to producing oversized, high-precision components for various industries:

✓ Automotive Industry: Creates large body panels, chassis components, and fuel tanks with tight tolerances and seamless finishes.
✓ Aerospace: Forms structural components like wing panels and engine casings using lightweight materials like aluminum and titanium.
✓ Industrial Equipment: Manufactures robust containers, pressure vessels, and machinery housings for harsh conditions.

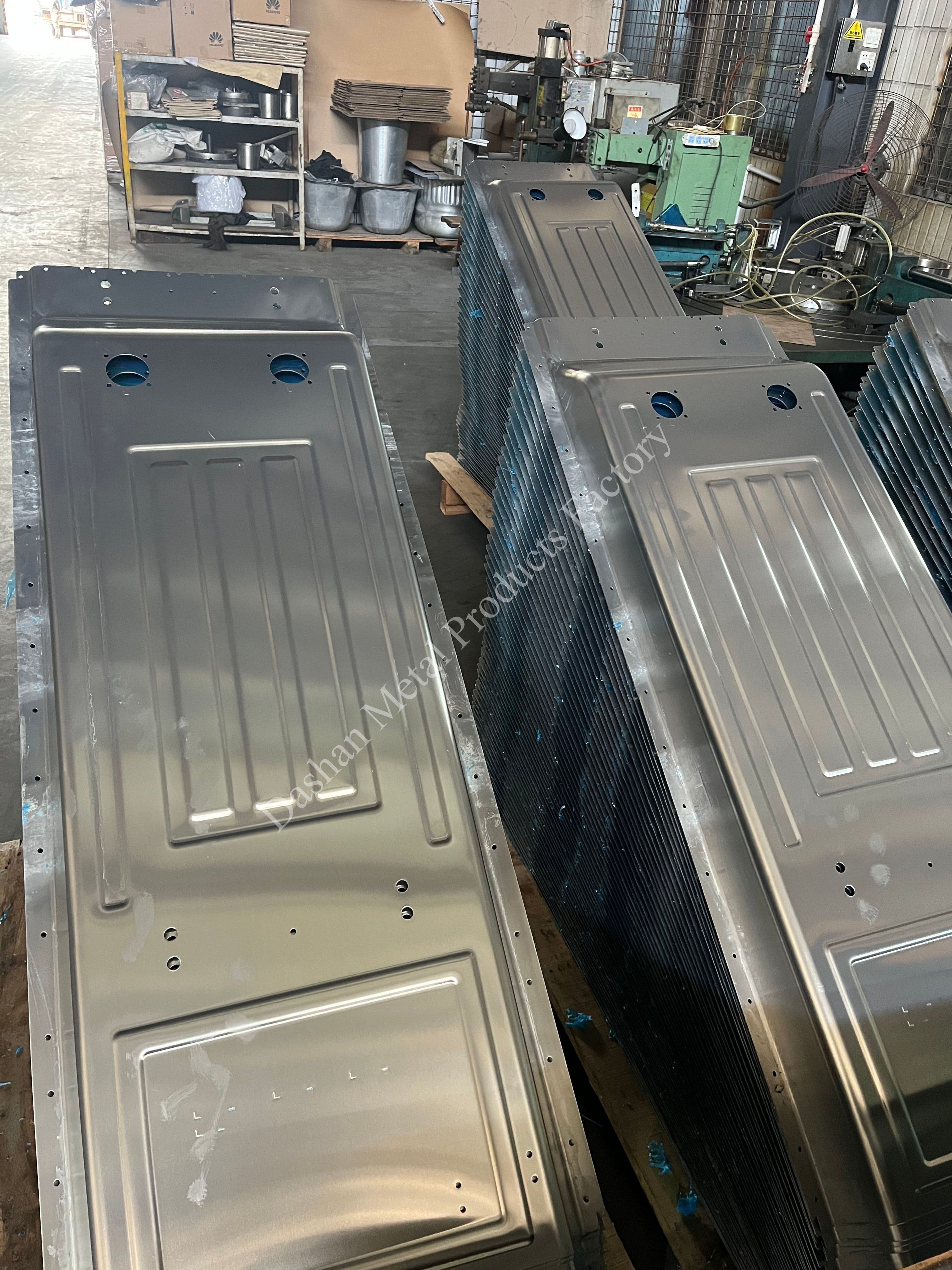

✓ Custom Hardware Processing: Enables bespoke metal parts tailored to specific client requirements.

Advantages of Large-Scale Stamping Dies

✓ High Precision: Produces complex parts with tight tolerances, ensuring consistency in high-volume runs.
✓ Material Efficiency: Minimizes waste by optimizing large metal sheets, reducing costs.
✓ Durability: Work-hardened components exhibit enhanced strength for demanding applications.
✓ Scalability: Suitable for both high-volume and custom low-volume production.

Choosing the Right Stamping Die Manufacturer

Selecting a manufacturer with expertise in large-scale stamping dies is crucial. Look for providers with advanced equipment, experience in material-specific stamping, a proven track record of customized solutions, and robust quality control processes to ensure die precision and longevity.

Conclusion

Large-scale stamping dies are at the heart of modern metal forming, driving efficiency and precision in industries requiring oversized components. By addressing design challenges and leveraging advanced engineering, these dies support custom hardware processing and stainless steel stamping. As technology advances, innovations in die design will further solidify their role in industrial manufacturing.
